Berlin hammam built by Sauna Dekor: heated göbektaşı and domed ceiling

[ Project ]

Ilgaz Mountain Resort Hotel Spa

Türkiye

Sauna Dekor Spa Solutions — designing, manufacturing and installing saunas, steam rooms, hammams and pools since 1987, in our own facility in İkitelli OSB, Istanbul.

Hammam, sauna and shock bucket built for a mountain resort hotel spa in Türkiye — cold-side detailing, heat-up from cold and tanking practice.

  • Sauna
  • Turkish bath & hammam
  • Shock bucket

Project summary

What we delivered

  • Rooms: Turkish Bath & Hammam, Sauna, Shock Bucket
  • Where and when: Türkiye, 2015
  • In short: Hammam, sauna and shock bucket built for a mountain resort hotel spa in Türkiye — cold-side detailing, heat-up from cold and tanking practice.

[ 6 photos ]

From the project

Hammam

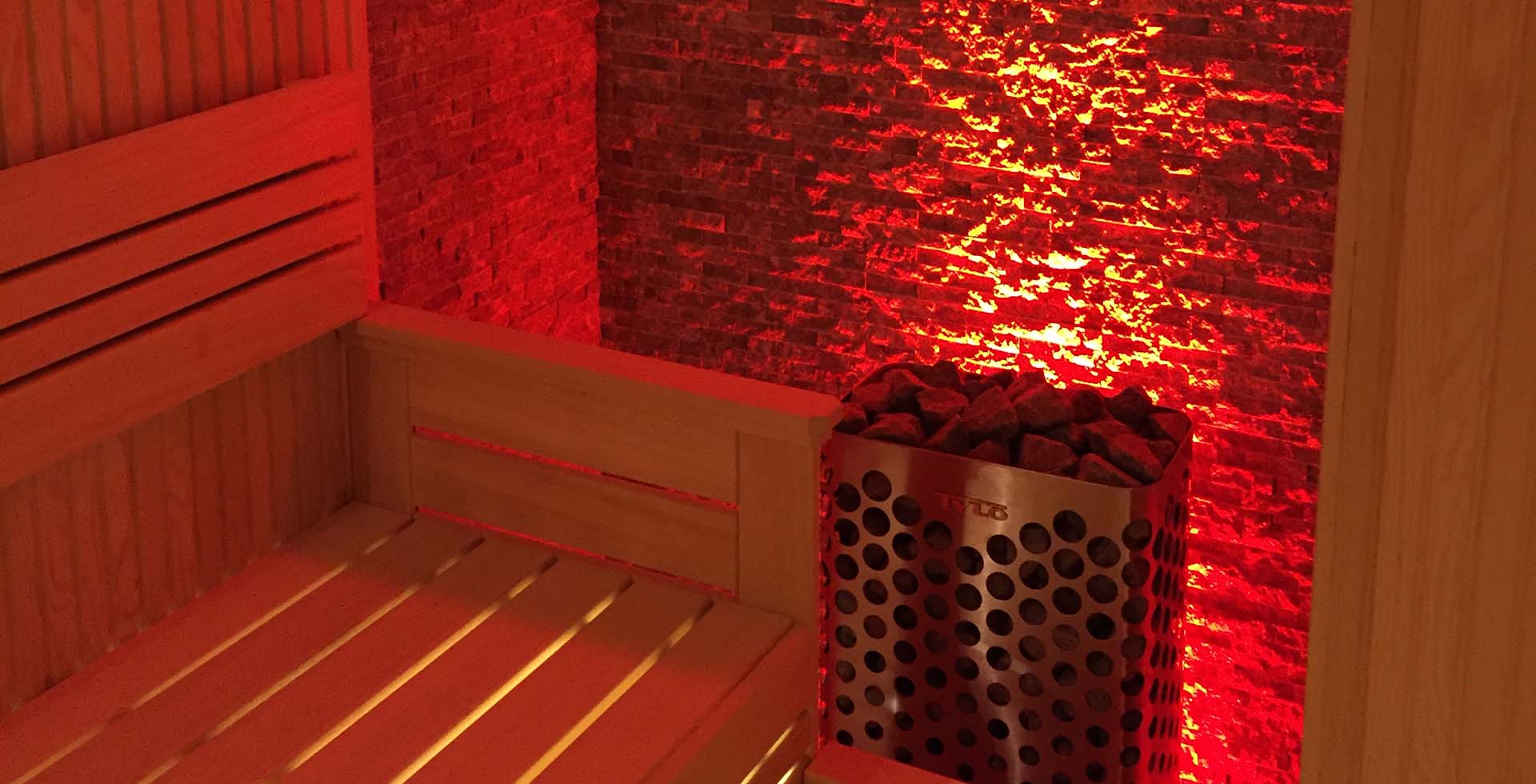

Sauna
Sauna
Sauna

[ The build ]

01

Overview

Sauna Dekor builds thermal areas end to end — design, manufacture, installation and commissioning under one contract. The company started in 1987, is in its 40th year, manufactures in İkitelli, Istanbul, and has completed projects in 41+ countries.

This page records the spa at the Ferko Ilgaz Mountain Resort Hotel in Türkiye. The zoneslisted for the project are Turkish bath, hammam, sauna and a shock bucket.

02

Scope of work

A mountain resort thermal suite: a marble hammam, a timber sauna and a shock bucket for the cold reaction between rounds. The package covered the room build-up and tanking, the marble and mosaic, the cabin with its heater and control, the cold-side installation and its drainage, the ventilation terminals and commissioning.

03

Building a thermal suite in a cold climate

A mountain hotel changes two things. First, the building is cold for much of the year, so a thermal room starts from a lower ambient and both the sauna and the hammam take longer to reach condition than the same rooms in a city hotel. That is a scheduling matter for the operator as much as a sizing matter for us: the hammam in particular, being a heated slab, needs its soak period built into the daily routine. Second, the insulation and vapour detailing around the rooms matter more, because the temperature difference across the cabin envelope is larger.A continuous vapour barrier with taped laps behind the lining is what keeps that difference from driving moisture into the surrounding structure.

04

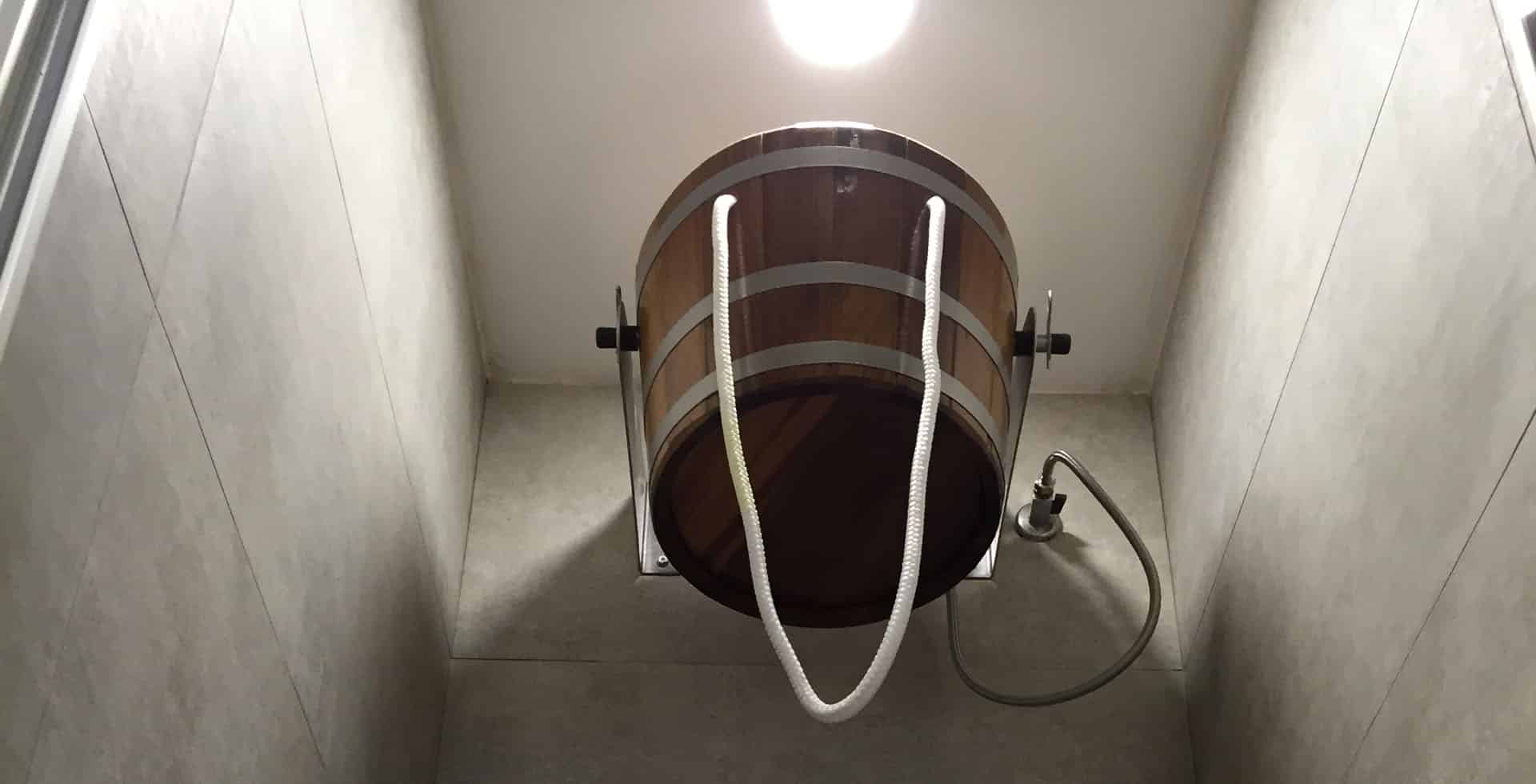

The cold side: shock bucket detailing

A shock bucket looks simple and is the fitting most often installed badly. It needs a water supply that can refill it quickly enough for the next guest, a fixing substrate that will take the dynamic load of a full bucket tipping, and — most importantly — floor falls and a gully directly beneath it sized for the whole volume arriving at once. A floor laid to a general fall will not clear that. It also needs to sit where a guest can reach the cord without standing inthe splash zone of the person before them. Related product pages:shock bucket,ice fountain andsauna and cold plunge.

05

Heat, air and tanking

Sauna sizing follows the general rule of roughly a kilowatt of stone-heater output per cubic metre of volume, with additions for glazing and masonry, and in a resort the heater is a commercial unit with serviceable elements and an external, setpoint-limited control. Air follows room type: sauna supply low at the heater with low extract opposite; hammam with continuous extract that runs past closing so the room dries down. Wet rooms were tanked before finishes — bonded membrane over the screed, tape into corners, movement joints and penetrations, falls in the screed, epoxy grout above. The hammam ceiling is vaulted to shedcondensate to the perimeter.

06

What we solved on site

Seasonality is the operational problem at a mountain resort: the spa runs hard in season and then stands idle. Rooms left closed up wet at the end of a season lose grout, seals and joinery far faster than rooms that are dried down and left dry, so the commissioning handover coveredshutdown as well as operation — how to run the extract on after the last guest, how to leave the hammam, and what to check before reopening. The marble and cabin were dry-assembled and numbered in our Istanbul workshop before delivery to site. See hotel spa design.

07

Frequently asked questions

What does a shock bucket need underneath it?

Falls and a gully sized for the entire volume arriving at once, directly below the bucket. A floor laid to a general fall will not clear it. It also needs a substrate that takes the dynamic load of a full bucket tipping.

Does a cold climate change how a sauna is built?

It raises the temperature difference across the cabin envelope, so insulation and a continuous taped vapour barrier matter more, and both sauna and hammam take longer to reach condition from a colder starting ambient.

How should a seasonal spa be shut down?

Dried and left dry. Extract runs on after the last guest, the hammam is allowed to cool and dry rather than being sealed wet, and the reopening check is part of the handover — a room closed up wet loses grout, seals and joinery quickly.

Where should the shock bucket be positioned?

Where a guest can reach the cord without standing in the splash zone of the person before them, and where the drainage below it is dedicated rather than shared with the general floor falls.

Sauna Dekor’s own certification is TS EN ISO 9001:2015 quality management, covering sauna and spa product manufacturing and after-sales service. The equipment we install carries CE / EN 60335, TÜV, GS, GREENGUARD Gold, FSC and VDI 6022 certification from its own manufacturers — EOS, Sentiotec and Condair among them.
