Pale wood sauna with tiered benches, LED-lit backrests, dark heater stones and a slatted wall lamp

[ Project ]

Catalca Private Property

Istanbul · Türkiye

Sauna Dekor Spa Solutions — designing, manufacturing and installing saunas, steam rooms, hammams and pools since 1987, in our own facility in İkitelli OSB, Istanbul.

Steam room and sauna built into a countryside house at Catalca, Istanbul — water quality and scale, generator protection, ventilation and tanking.

  • Sauna
  • Steam room

Project summary

What we delivered

  • Rooms: Steam Room, Sauna
  • Where and when: Istanbul · Türkiye, 2016
  • Equipment: Condair steam generator

[ 2 photos ]

From the project

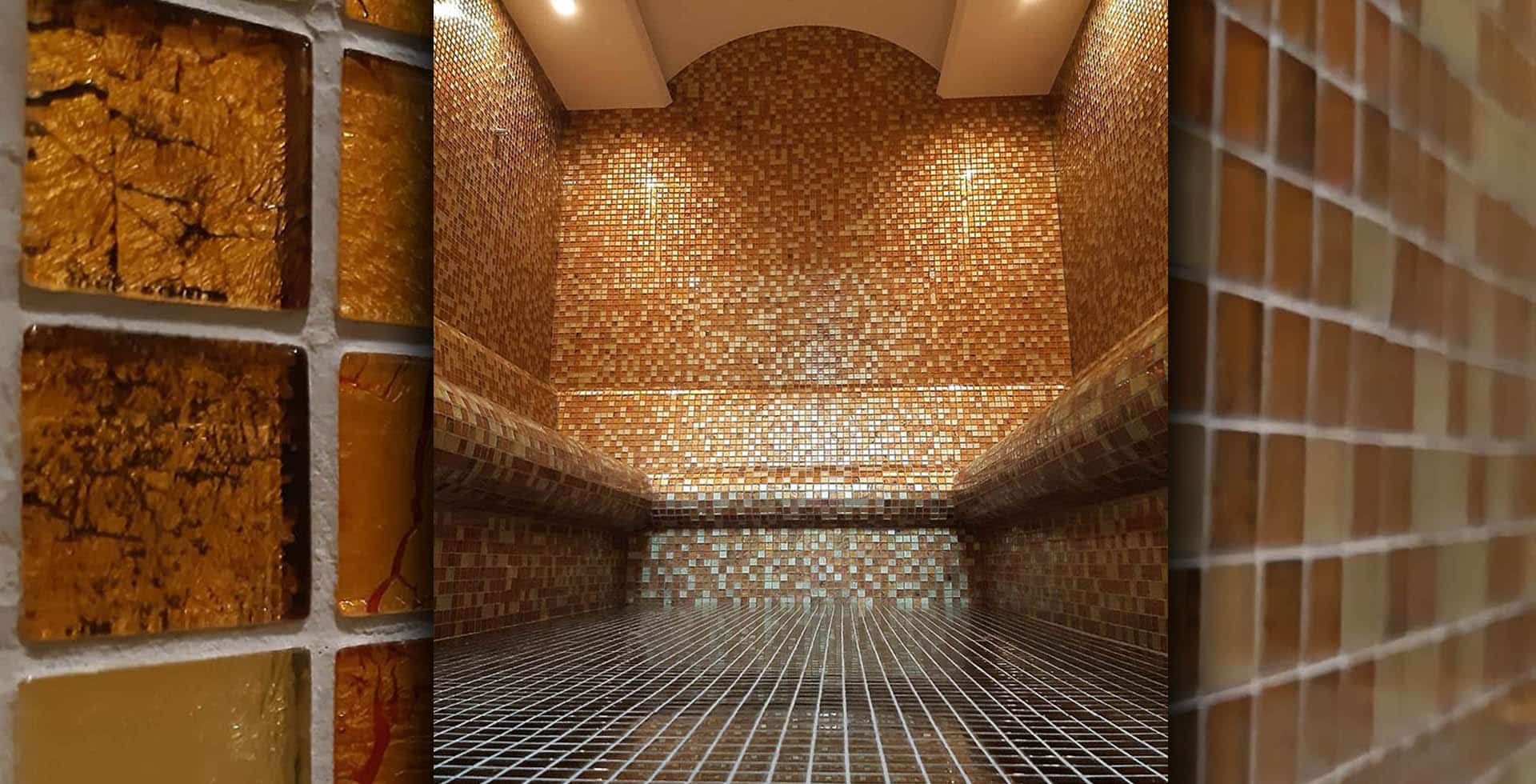

Steam room

[ The build ]

01

Overview

Project facts: Delivered 2016 · Çatalca, Istanbul, Türkiye · Scope: steam room, sauna · Equipment: Condair steam generator

Sauna Dekor designs, manufactures and installs saunas, hammams and steam rooms as a single contractor. The company was founded in 1987, is now in its 40th year, and works from its own production plant in İkitelli, Istanbul, with completed thermal areas in 41+ countries.

This project is a steam room and sauna built into a countryside house at Catalca, on the rural edge of Istanbul. The owner is not named; the page records the district, the property type and the work. The zones listed are steam room and sauna.

02

Scope of work

A domestic thermal pair: a sealed steam enclosure with its generator, and a timber sauna cabin beside it. The package covered the room build-up and tanking, the finishes, the cabin with its heater and control, the generator and steam head, ventilation terminals, drainage andcommissioning.

03

Water quality is the design question nobody asks

Out of the city, a house is often on a well or a local supply rather than treated mainswater, and that matters more to a steam room than any other decision on the drawing. A steam generator boils water continuously; everything dissolved in that water stays behind. Hard or mineral-rich water scales the element and the vessel, and scale is the single most common reason a domestic steam generator fails early. The remedy is to establish the water’s hardness before selecting equipment, provide treatment or softening ahead of the generator, and specifya unit whose drain-down and descaling routine an owner will actually carry out. Ourhow to build a steam room guide covers the same ground.

04

Sizing and sealing the enclosure

General practice sizes a steam generator on enclosure volume, applies a correction for the finish material — stone or mosaic on a masonry backing is a large thermal mass and needs morethan the same volume over insulated board — then adds headroom for door openings. The enclosure has to be genuinely vapour-tight, because it is under vapour pressure rather than merelysplashed: the membrane runs over screed, walls and ceiling, taped into every corner, movement joint and penetration. The steam head sits low, away from seats, discharging into open floor,and the ceiling is coved or pitched so condensate runs to the perimeter. Product page:steam room.

05

The sauna beside it

The dry cabin is sized at roughly a kilowatt of stone-heater output per cubic metre of volume with additions for glazing and masonry, on a dedicated circuit — three phase above a modest rating, which in a rural house is worth confirming early along with the stability of the supply. Air enters low near the heater and leaves low on the opposite side. The cabin is an insulated box with a continuous foil vapour barrier, a ventilated cavity and a kiln-dried,low-resin lining. See sauna andsauna versus steam room.

06

What we solved on site

A rural site means the services, not the joinery, are the risk: water quality, the electrical supply and its stability, and where waste water can legitimately go. We resolved those before the equipment was selected rather than after, and specified components we can support from Istanbul, because a rural house has no local service network for a steam generator. Both rooms were made and dry-assembled in ourIstanbul workshop and delivered numbered.

07

Frequently asked questions

Does water quality affect a steam room?

More than any other single factor. A generator boils water continuously and everything dissolved stays behind; hard or mineral-rich water scales the element and is the most common cause of early failure.

What should be done about hard water?

Establish the hardness before selecting equipment, provide treatment or softening upstream of the generator, and choose a unit whose drain-down and descaling routine the owner will realistically carry out.

Why must a steam enclosure be sealed over the ceiling too?

Because it is under vapour pressure rather than splashed. Moisture is driven into every joint and penetration, so the membrane runs over screed, walls and ceiling and is taped at every corner.

What matters most on a rural site?

The services rather than the joinery: water quality, electrical supply and its stability, and a legitimate route for waste water — all resolved before equipment is selected.

Sauna Dekor’s own certification is TS EN ISO 9001:2015 quality management, covering sauna and spa product manufacturing and after-sales service. The equipment we install carries CE / EN 60335, TÜV, GS, GREENGUARD Gold, FSC and VDI 6022 certification from its own manufacturers — EOS, Sentiotec and Condair among them.
